I can design a custom patio cover or support beam. If your looking for a cantilevered patio cover I can design that and do a stress analysis to make sure it meets all safety standards. I can also supply you with a quote if you have a drawing already. I can provide installation for all products if needed.

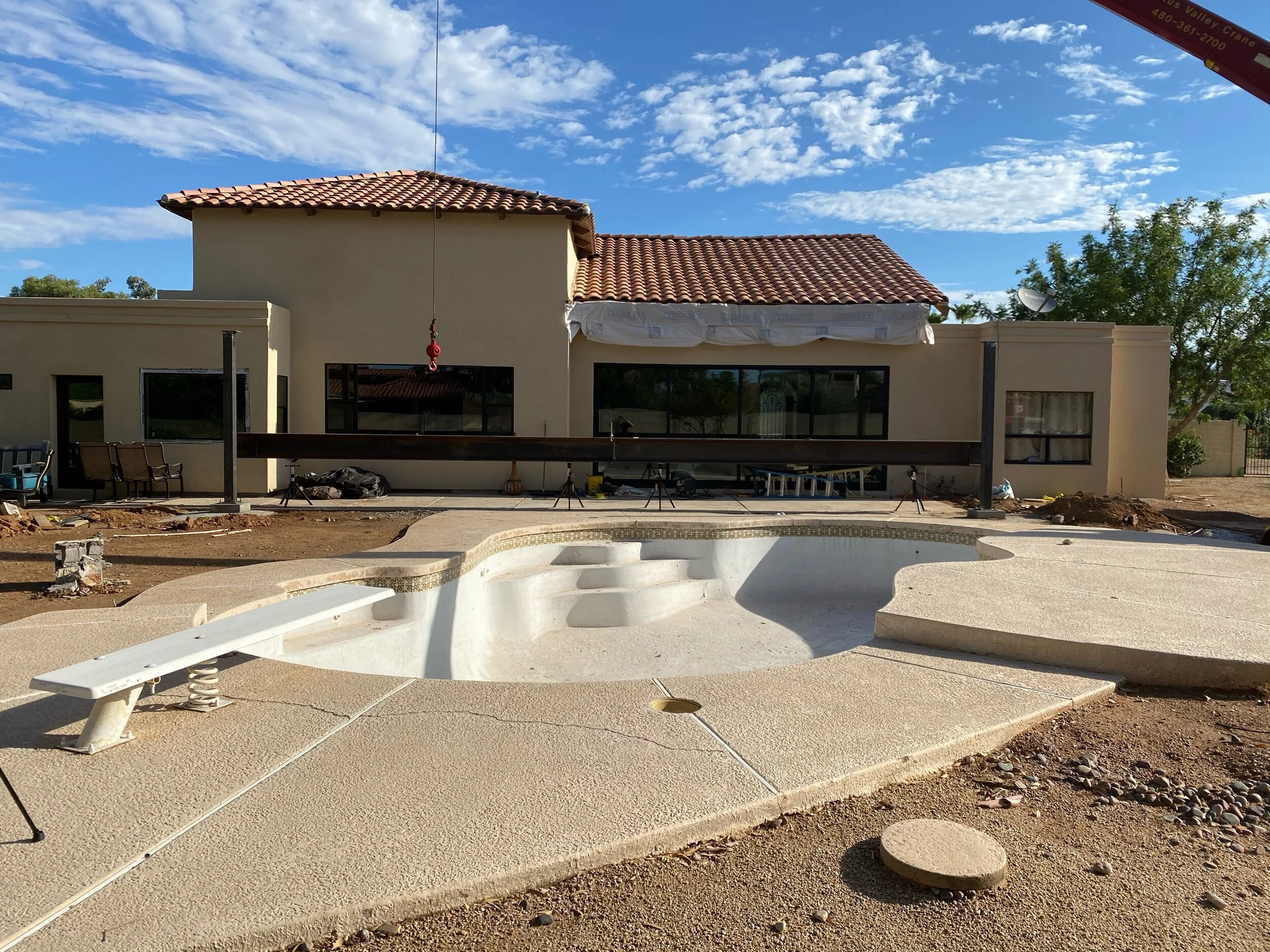

The customer wanted a patio that didn’t have a middle column to give that open feeling. So I fabricated this support beam out of a W16 x 89 I-beam. This beam spans a distance of 45.5’ unsupported. The columns are 10’ tall and made out of 6” x 6” x 1/4” thick square tube with 1/2” plates on the top and bottom. The beam was so large and access was limited so we had to make it out of two pieces and weld it on site.
